ConseptPatio 68

Elegance, Comfort and Security

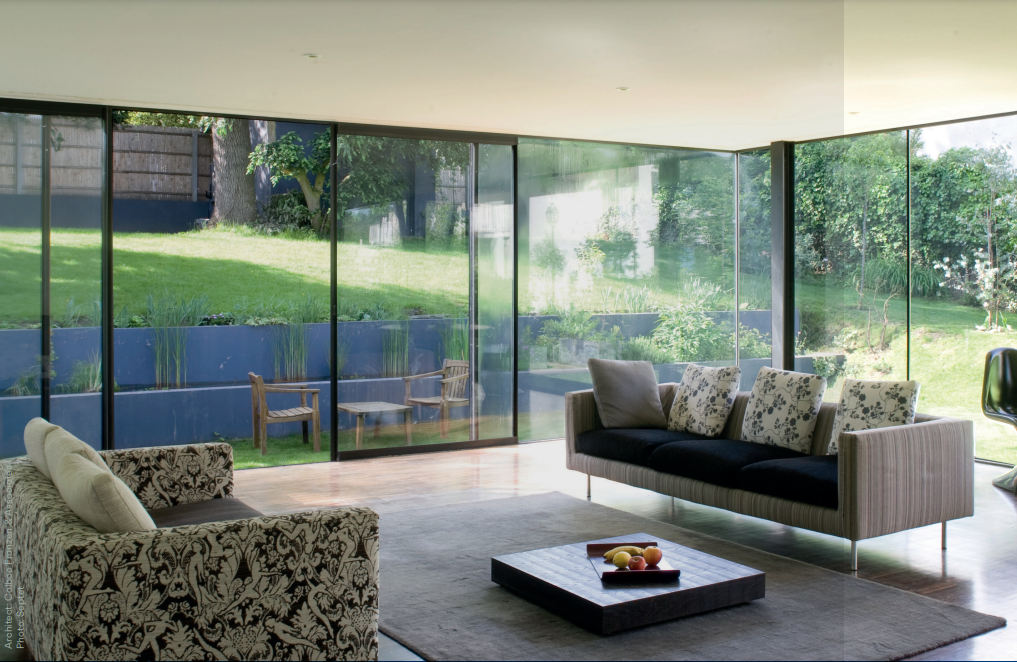

The ConceptPatio 68 aluminium sliding system combines a unique style, great performances, and excellent security. Its slim sightlines ensure maximised daylight entrance, while open corner and pocket opening solutions offer uninterrupted views.

Features / Highlights

  • Small sightlines for maximized daylight entrance
  • Large variety of configurations, including open corner and pocket doors
  • Ideal for renovation in moderate climates

DESIGN

Outside View

Inside View

Designs

Properties



“TECHNICAL CHARACTERISTICS

Style variants

2-RAIL

3-RAIL

Visible width / height

Frame / Vent

4 5/16”

4 5/16”

Meeting section

1 5/16”

1 5/16”

Overall system depth

Frame/Vent

2 11/16”

4 7/8”

Meeting section

1 5/8”

1 5/8”

Maximal vent height

98 7/16”

Maximal vent weight

352 lbs

Rebate height

11/16”

Glass thickness

1 1/8” – 1 7/16”

Glazing method

with EPDM in accordance with the envelope principle

Thermal insulation

1 1/4” and 1 7/16” fibreglass reinforced polyamide strips

Opening Configurations

Handle-purity

Performance



PERFORMANCE SPECIFICATIONS




Thermal Insulation (Btu/hr∙ft²∙°F)



UW

Double

Triple

0.29

0.24


SHGC

0.13

0.19



Acoustic Performance

ASTM E90-09/1332

STC

38



Air Tightness (cfm/ft²)

0.15



AAMA Rating

CW PG60



Water Tightness  (psf)

12

The Different Colours & Finishes

Powder-coated or lacquered aluminum

  • All RAL colours
  • Surface is covered with a top layer
  • Aesthetic value and added protection
  • Matt, glossy, coatex, or metal finish
  • Long-term protection of water and UV
  • Low-maintenance and easy to clean

Different Threshold Solutions

Jet Black 9005
Metallic alu. 9006
Beige Grey 7006
Graphite grey 7024
Black grey 7021
Window Grey RAL 7040

Anodized aluminum

  • Controlled oxide layer
  • High level of protection with a natural look
  • Preservation original aluminum structure
  • Long-term protection of water and UV
  • Low-maintenance and easy to clean
