HIFINITY

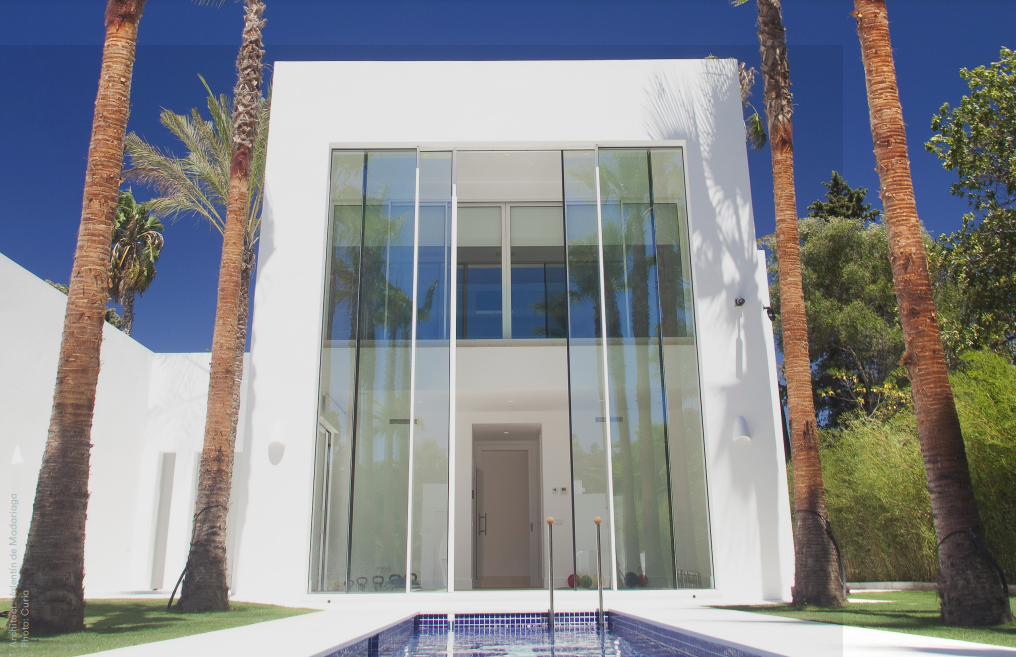

The infinite view

HiFinity's ultra-slim profiles create seemingly endless transparent surfaces with a minimalist look. The elegant aluminium sliding system combines an infinite view with impressive performances. The perfect choice for any low-energy contemporary building.

Features / Highlights

  • Mono, 2, 3 & Multi Rail Configurations
  • Lift & Slide Technology
  • Flat & Zero (Flush) Thresholds
  • 90 Degree Corner Profiles
  • Pocket Solution
  • High Design – Slimline Sliding Doo

DESIGN

Monorail

A Monorail combines a movable vent on one side of the frame with a stationary glazed element anchored directly into the frame on the other, creating a minimalistic look. Utilizing a fixed panel in lieu of fixed vent reduces sight-lines while allowing for the integration of optional inward opening window(s) into the interior side of the frame. However, it is possible to mount the fixed portion on the outside, when glazing the unit from the exterior is desired.

2-Rail-3 Rail-MULTI-RAIL

The outer door frames can be expanded from two (2) to eight (8) rails deep holding up to 16 panels; the combinations are endless, facilitating creative designs for very large openings. Any of the vents can be made into sliding elements, yielding a wide range a door combinations and flexibility for users.

ZERO THRESHOLD Hi-Finity is always a zero threshold solution, but we also offer 2 alternatives:

Profile Finish lets you cover the track area, so the floor level remains the same everywhere, which is especially useful with multitrack solutions. Floor Finish lets you completely erase the system boundaries, by continuing the flooring on top of the system. When the door is opened, the bottom profile ‘disappears’

Profile finish

Floor Finish

Designs

Opening Configurations

Properties



“TECHNICAL CHARACTERISTICS

Style variants

DOUBLE GLAZING

TRIPLE GLAZING

Height

Built-in frame

2 11/16”

3 15/16”

Visible width / height

Vent

5/16”

3/8”

Meeting section

1 3/8”

Meeting section 4 doors

2 5/8”

2 11/16”

Overall system depth

Frame

Duo Rail: 5 13/16” 3-Rail: 9 3/16”

Duo Rail: 7 1/16” 3-Rail: 11 1/8”

  Vent

1 3/4”

2 3/8”

Maximal element height

137 13/16”

Maximal weight

Manual vent

661 lbs

Motorized vent

1,653 lbs

Fixed glass panel

2,645 lbs

Glass thickness

1 7/16 – 1 1/2”

2 1/16 – 2 1/8”

Glazing method

Structural glazing

Thermal insulation

1 5/8 & 1 15/16” fibreglass reinforced polyamide strips

Performance

PERFORMANCE SPECIFICATIONS
 ENERGY
Thermal Insulation (Btu/hr∙ft²∙°F)GlazingDoubleTriple
UW0.280.20
SHGC0.210.20
 COMFORT

Acoustic Performance

ASTM E90-09/1332



STC

45
OITC37



Air Tightness (cfm/ft²)

0.07



AAMA Rating

AW PG60



Water Tightness  (psf)

12
This table shows classes and values of performances, which can be achieved for specific configurations and opening types. (1) All results based on gateway sizes; vary depending on glass/profile combinations | Above Uw & SHGC values do not necessarily work in combination. (2) Uw is the measure of heat transfer through the fenestration product with glass. The lower the Uw, the better the thermal insulation of the element. (3) The sound reduction index measures the capacity of the sound reduction performance of the frame and glass. (4) The air tightness test measures the volume of air that would pass through a closed window at a certain air pressure. (5) Water tightness testing applies a specified air pressure differential while simultaneously spraying water on to the ext. face of the assembly at the rate of 5 gal/hr/ft2.

HANDLE-PURITY

The Different Colours & Finishes

Powder-coated or lacquered aluminum

  • All RAL colours
  • Surface is covered with a top layer
  • Aesthetic value and added protection
  • Matt, glossy, coatex, or metal finish
  • Long-term protection of water and UV
  • Low-maintenance and easy to clean

Different Threshold Solutions

Jet Black 9005
Metallic alu. 9006
Beige Grey 7006
Graphite grey 7024
Black grey 7021
Window Grey RAL 7040

Anodized aluminum

  • Controlled oxide layer
  • High level of protection with a natural look
  • Preservation original aluminum structure
  • Long-term protection of water and UV
  • Low-maintenance and easy to clean
