ConceptWall50
Unlimited creative freedom and maximum entrance of light
ConceptWall 50 is a curtain wall façade and roof system that offers incredible building speed, unlimited design freedom and exceptional performance. The stick façade’s highly insulated variants achieve energy efficiency up to Passive House levels.
Features / Highlights
- Standard 2” Visible Width for All Spans
- Variety of Cap Designs & Sizes
- Structurally Clamped Configuration
- Slim (Steel Look) Frame Option
- Combines w/ All Other Product Solutions
Product Solution
Concept Wall Cw 50
CW 50 is the standard frame for curtain wall that blends well with any of the various profile designs within our product lines
Cw 50-sl Slimline

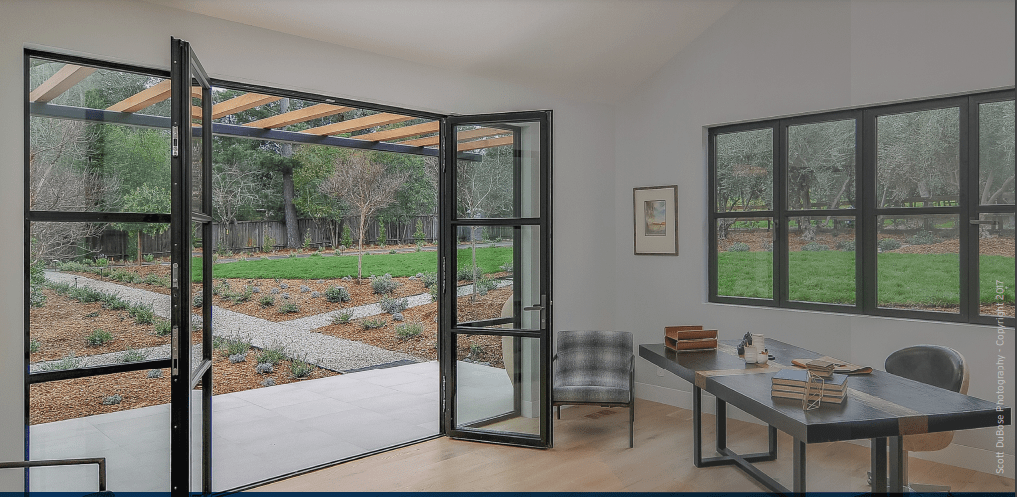

CW 50-SL Slimline features a slim frame to coordinate with other slimline product variants to achieve a steel or classic look
Cw 50-sc Structural Clamped
CW 50-SC structural clamped curtain wall is ideal when seeking a continuous flush pane of exterior glass for a sleek look.
Four Threshold Options
A VARIETY OF CAP DESIGN OPTIONS. The CW 50 stands for an extensive range of profiles, gaskets, accessories and tools, specially developed for easy installation. This range of CW 50 profiles meet all the requirements of contemporary architecture, including a large variety of exterior options.
Designs
Properties
“TECHNICAL CHARACTERISTICS | |||
Profile Dimensions | Visible Width (in.) | ||
Interior | Exterior | ||
CW 50 Standard | Standard | 2 | 2 |
CW 50 |
Slimline | 2 | 2 |
CW 50-SC | Structurally Clamped | 2 | 3/4” Caulk Joint |
Popular Exterior Cap Design Options
Performance
PERFORMANCE SPECIFICATIONS | CW 50 | CW 50-SlimLine | CW 50-SC | |||||
Thermal Insulation (2) (Btu/hr∙ft²∙°F) per NFRC 102 | Glazing | Double | Triple | Double | Triple | Double | Triple | |
Uw | 0.23 | 0.14 | 0.23 | 0.14 | 0.23 | 0.14 | ||
SHGC | 0.25 | 0.18 | 0.25 | 0.18 | 0.25 | 0.18 | ||
Acoustic performance(3) ASTM E90- 09/1332 | STC | 41 | 41 | 39 | ||||
OITC | 35 | 35 | 34 | |||||
Air tightness, max. test pressure(4) (cfm/ft² | 0.02 | 0.02 | 0.02 | |||||
Water tightness(5) (psf) | 90 Structural Overload | 90 Structural Overload | 90 Structural Overload | |||||
AAMA Rating AAMA/WDMA/CSA 101/I.S.2/A440, NAFS | 15 | 15 | 15 | |||||
All results based on gateway sizes; vary depending on glass/profile combinations | Above Uw & SHGC values do not necessarily work in combination | ||||||||
The Different Colours & Finishes
Powder-coated or lacquered aluminum
- All RAL colours
- Surface is covered with a top layer
- Aesthetic value and added protection
- Matt, glossy, coatex, or metal finish
- Long-term protection of water and UV
- Low-maintenance and easy to clean
Different Threshold Solutions
Jet Black 9005
Metallic alu. 9006
Beige Grey 7006
Graphite grey 7024
Black grey 7021
Window Grey RAL 7040
Anodized aluminum
- Controlled oxide layer
- High level of protection with a natural look
- Preservation original aluminum structure
- Long-term protection of water and UV
- Low-maintenance and easy to clean
