MasterLine 10

No compromise

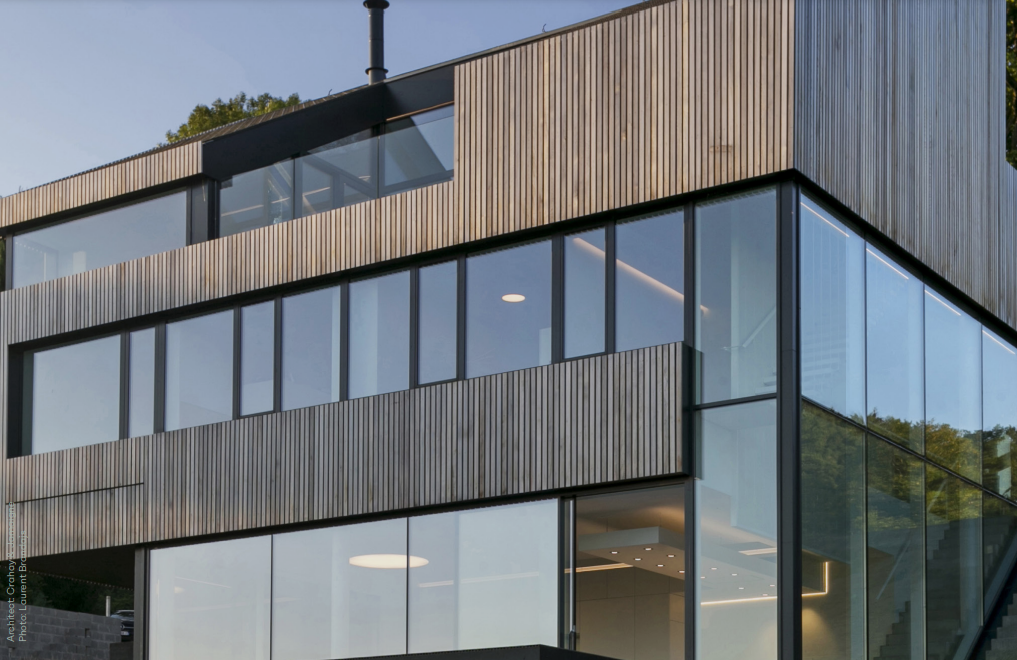

MasterLine 10 aluminium windows fit the building trends of today and tomorrow. The Passive House-certified solution is ideal for low-energy building, as it combines maximum daylight access, optimal performance, and safety without compromise.

Features / Highlights

  • Best value for money amongst passive house certified systems
  • One of our most sustainable solutions
  • Several design options

Product Solution

Deco

This product has   developed to mimic the look of wooden windows, and the Deco variant replicates the more modern chamfer details

Renaissance

This product has   developed to mimic the look of wooden windows, and the Renaissance variant replicates the curves and steps of milled woord detailing.

Designs

Properties



TECHNICAL CHARACTERISTICS

Style variants



CUBIC

Min. visible width inward opening window

Frame

1 5/16”

1 5/16”

Vent

7/8”

7/8”

Min. visible width outward opening window

Frame

1 1/8”

  Vent

2 3/8

Min. visible width inward opening window-door

Frame

1 5/16”

1 5/16”

  Vent

2 1/16”

2 1/16”

Min. visible width outward opening window-door

Frame

1 1/8”

  Vent

3 1/4“

Min. visible width T-profile

1 7/8”

1 7/8”

Overall system depth window

Frame

3 7/8”

3”

  Vent

3 3/8”

2 15/16”

Rebate height

9/16”

9/16”

Glass thickness

up to 2 3/16”

up to 2 3/16”

Glazing method

dry glazing with EPDM or neutral silicones

Thermal insulation

omega-shaped fibreglass reinforced polyamide strips (frame 1 9/16” – vent 1 1/4”)

High Insulation variant (HI)

available

Window Handle Purity

Performance

PERFORMANCE SPECIFICATIONS

FIXED

OPERABLE

TERRACE DOOR



ENERGY



Thermal Insulation (2) (Btu/hr∙ft²∙°F) per NFRC 102



Double

Triple

Double

Triple

Double

Triple

Fixed

Uw

0.23

0.16



SHGC

0.19

0.21



Open In

Uw



0.25

0.19

0.30

0.25

SHGC



0.20

0.17

0.09

0.10

Open out

Uw



0.32

0.26

0.31

0.26

SHGC



0.16

0.15

0.09

0.10



COMPORT



Acoustic performance(3) ASTM

E90- 09/1332

STC

45

42

38

OITC

38

35

34

Air tightness, max. test pressure(4) (cfm/ft²

0.02

0.01

0.05

Water tightness(5) (psf)

12.11

12

11.28

AAMA Rating AAMA/WDMA/CSA 101/I.S.2/A440, NAFS

AW PG100

AW PG100

CW PG30 (Open In) CWPG40 (Open Out)

This table shows classes and values of performances, which can be achieved for specific configurations and opening types. (1) All results based on gateway sizes; vary depending on glass/profile combinations | Above Uw & SHGC values do not necessarily work in combination. (2) Uw is the measure of heat transfer through the fenestration product with glass. The lower the Uw, the better the thermal insulation of the element. (3) The sound reduction index measures the capacity of the sound reduction performance of the frame and glass. (4) The air tightness test measures the volume of air that would pass through a closed window at a certain air pressure. (5) Water tightness testing applies a specified air pressure differential while simultaneously spraying water on to the ext. face of the assembly at the rate of 5 gal/hr/ft2.

The Different Colours & Finishes

Powder-coated or lacquered aluminum

  • All RAL colours
  • Surface is covered with a top layer
  • Aesthetic value and added protection
  • Matt, glossy, coatex, or metal finish
  • Long-term protection of water and UV
  • Low-maintenance and easy to clean

Different Threshold Solutions

Jet Black 9005
Metallic alu. 9006
Beige Grey 7006
Graphite grey 7024
Black grey 7021
Window Grey RAL 7040

Anodized aluminum

  • Controlled oxide layer
  • High level of protection with a natural look
  • Preservation original aluminum structure
  • Long-term protection of water and UV
  • Low-maintenance and easy to clean
