Hinged Door System 4500

Maximize Interior Space

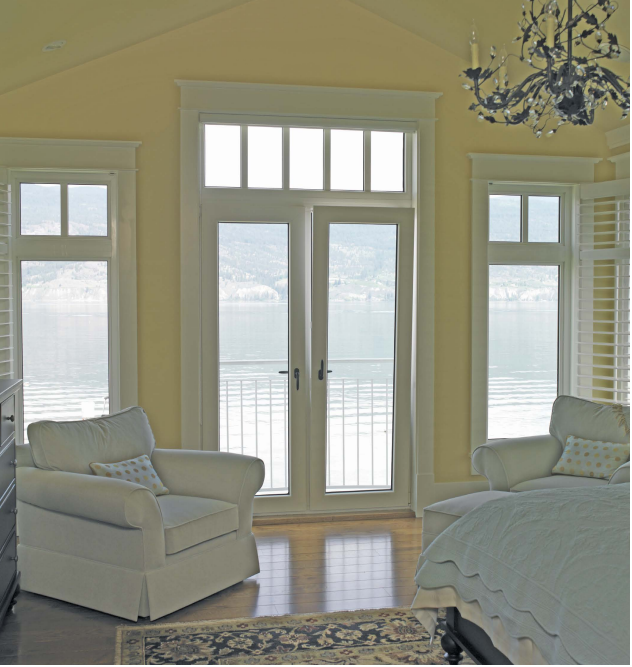

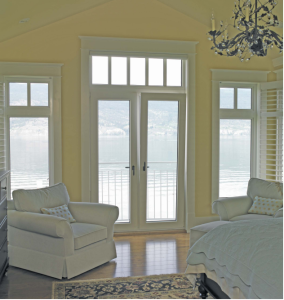

The REHAU System 4500 hinged door design is offered as a single sash creating a beautiful main entrance or as a dual sash, also referred to as French doors, connecting the indoors with the outdoors. This versatile door system can be used for patio, deck or balcony access and is a popular choice among designers as an attractive alternative to sliding doors.

Features / Highlights

  • HINGED DOOR 4500
  •  A VERSATILE, high-performance style

Key Features And Benefıts

Unique PVC corner blocks connect steel reinforcement keeping hinged door corners in-square for long-term, trouble-free operation. Outward opening (left) and inward opening (right) styles meet a variety of design requirements

  1. Frame profiles with different depths provide flexibility for new construction and replacement applications
  2. Multiple locking points and compression seals all around the sash perimeter provide high water performance, minimal air infiltration, security and good sound insulation
  3. Large reinforcement chambers in the sash allow for sash sizes as large as 8 ft (2.4 m) high and 3.5 ft (1.1 m) wide for single doors and 3 ft (0.9 m) wide for French doors
  4. High quality hardware operates quietly and effortlessly
  5. Large glazing capacity, including special high-performance glass of 1 3/8 in (35 mm) in thickness, improves energy efficiency and acoustical properties
  6. Weldable corner joints in the sash profiles strengthen the door panel against distortion and provide long-term, smooth operation

Hinged Door 4500 Achieving Optimal Energy Efficiency

Multi-point locking hardware and heavy duty hinges provide the longevity and security you want. With insulated glass unit (IGU) thickness of 3/4 to 1 3/8 in (19 to 35 mm), the System 4500 hinged door is suitable for all Energy Star zones in the United States and Canada.

Performance





Outward Opening – Single Door

Outward Opening – French Door

Inward Opening – Single Door

Inward Opening – French Door

NAFS

up to LC-PG80

up to LC-PG35

up to LC-PG40

up to LC-PG40

ASTM E90 Acoustical (STC)

up to 38 dB

up to 38 dB

up to 40 dB

up to 40 dB

U-factor

down to 0.24*

down to 0.23*

down to 0.23*

down to 0.23*

ASTM + TAS



Impact Resistant DP-65 HVHZ



Opening Configurations

Handle

Protecting your loved ones

The handle is a prominent feature of a window system and it speaks volumes about the engineering developments that lie behind the PVC profile walls.

Beyond opening and closing the sash, a well-designed handle protects your home from unauthorized entry through a window or door. Our desire to increase the intrinsic safety of window and door systems motivated us to introduce the REHAU LINEATM handle design.

The REHAU LINEA design handle

Equipped with a patented Secustik closing mechanism, when a LINEA handle is turned, it is locked with a click.

The connecting element between the handle and the spindle acts as a “mechanical diode.” This element ensures the normal operation of the window handle from the inside, and at the same time blocks any attempt to activate the mechanism from the outside.

Color

WOOD

SOLID

PROFILE
